8003 - Alumina Ceramic Grinding Vial Set

• Ideal for grinding hard, brittle samples to an analytical fineness in the 8000M Mixer/Mill® and 8000D Dual Mixer/Mill®.
• Also useful for blending powders and mixing emulsions.
• Long-wearing, very abrasion-resistant, and moderate efficiency.
• Alumina components are 99.5% pure aluminum oxide.
• Suitable for slurry grinding with 8015 Clamp.
• Volume: 45 mL.
• Recommended mixing load: 20 mL.
• Recommended grinding load: 2-8 grams.
• Typical composition: Major Elements – Al; Minor Elements – Si, Ca, Mg.
• Hardness: Mohs 9; Rockwell R45N 83; Knoop 2100.

Use with high-energy Mixer/Mill® grinders to pulverize and mix samples. Crush, grind, and mill various materials. Optimize performance of your Cole-Parmer® Freezer/Mill® grinders with a wide range of vial sets suitable for your application.

Alumina ceramic vial set is ideal for blending powders and mixing emulsions. Use with clamp 04576-69 for slurry grinding to prevent leakage and damage to the vial.

Hardness: Mohs 9; Rockwell R45N 83; Knoop 2100 Typical composition: Major Elements – Al; Minor Elements – Si, Ca, Mg

Since alumina is fragile, extreme care must be taken to prevent breakage. Starting sample size should be 1/4". Sample quantity should be between 5 and 15 g of a material that can reasonably be expected to be ground by ceramic. Do not use more than one 1/2" diameter grinding ball.

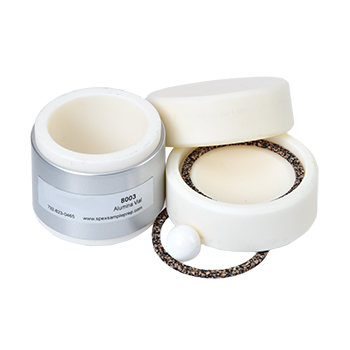

Vial is 2 ¼ in.diameter x 2 ¾ in. long (5.7 cm x 7.0 cm). Set includes high purity 99.5% alumina ceramic grinding vial body, two slip-on alumina ceramic caps, one ½ in. (12.7 mm) alumina ceramic ball, and eight corprene gaskets.
